142
JACKS AND PLUGS
MIL-TYPE 1/4" EXTENSION JACKS AND TELEPHONE PATCH ADAPTERS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

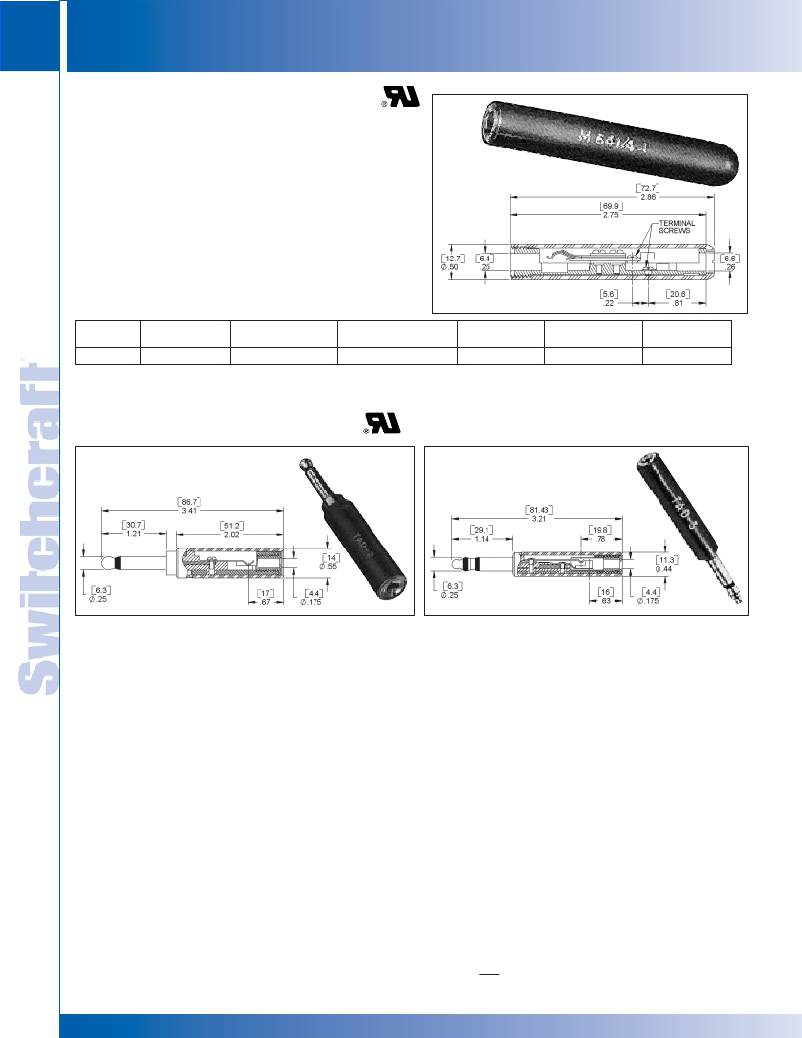

MIL-TYPE 1/4" EXTENSION JACKS
FEATURES
Cable jack meets requirements of Specification MIL-J-641(A), Type
Number JJ-026. Mates only with MIL-type plugs PJ-054 and PJ-540.
Switchcraft 430.
SPECIFICATIONS
Body and Terminal Screws: Copper alloy, natural finish.
Springs: Punched from special copper alloy.
Stack Insulation: Rigid plastic spacers Rigid plastic tubing.
Handle: Same as plug handle above.
Stack Screws: Stainless steel.
Number 820
Part
Typical Mating
Handle
MIL
Number
820
Conductors
2
Terminals
Screw 2, 3
Plug 1
430
Handle
Black
Part Number
M1015
Part Number
M641/4-1
1. Switchcraft Part Number See Jacks Section for mating jacks. 2. Switchcraft replacement screw. P1070 , Terminal P1069 (2 each required)
3. See previous page for strain relief clamp.
TELEPHONE PATCH ADAPTERS
TAD2
2-conductor
FEATURES
Compact patch adapters convert standard full-size phone jacks to
standard miniature phone jack connections with maximum
convenience and reliability at a minimum cost. Eliminates
cross-patching problems and need for combination patch cords with
standard phone plug on one end and a miniature phone plug on the
other. Adapters are 100% compatible with Switchcraft ?
telephone type and military phone jacks and miniaturized
tini-telephone patching system components, as well as equivalent
industry standard phone plugs.
TAD2 – 2-conductor adapter. Plug finger meets specifications for
MIL plug PJ-047 (MIL-P-642). Fits Switchcraft T-Jax ? , M-Jax ? ,
MIL-approved MT-Jax ? , and other industry-standard phone jacks
with .250" inside diameter sleeves. The .552" diameter handle
accommodates jacks on .625" centers. For quick identification,
TAD-2 is stamped on the blue handle - will not wear off with
constant use. Miniature 2-conductor jack built into plug body,
accepts miniature phone plugs with .173" diameter fingers, such
as Switchcraft tini-telephone ? plugs, Series TT200 and TT250,
and other standard miniature telephone plugs. TAD3 is a
3-conductor version of TAD2. Finger configuration meets
requirements of PJ-051 (MIL-P-642). Finger incorporates dead
ring to minimize plug and jack wear. Blue handle has diameter
TAD3
3-conductor
SPECIFICATIONS
Tip Rod, Ring, Sleeve Body and Screws: Copper alloy,
natural finish.
Insulation: Injection-molded plastic.
Jack Springs: Formed copper alloy.
Screw, Spring Retaining:
TAD2 - #2-64, steel. Part Number P1616 (one required).
TAD3 - #2-64, brass. Part Number P1070 (two required).
Ring Insulations (TAD3 only): Kraft paper sleeve.
Handle: Molded blue thermoplastic with die-stamped
identification legend. TAD2 Handle, (Part Number M1487 ),
and Retaining Screw, (Part Number T1677 ), one required.
TAD3 Handle, (Part Number M1488 ), and Retaining Screw,
(Part Number T1990 ), one required.
of .444".
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
www.switchcraft.com
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
